8-Bit Computer

Overview

This project was a ground-up implementation of a fully custom 8-bit computer, built from discrete logic components and custom PCB modules.
The system is Turing-complete, capable of executing a minimal instruction set, and was developed as a way to explore computer architecture at the gate and register-transfer level.

The design takes inspiration from Ben Eater’s breadboard computer, but expands it with a modular PCB-based implementation, Logisim simulations, and a structured hardware layout.

Contributions

• Architecture Definition: Designed a simple but complete 8-bit instruction set and system architecture (registers, ALU, program counter, memory, control logic).
• Schematic & PCB Design: Created KiCad schematics and PCB layouts for the computer’s core subsystems (general registers, ALU, program memory).
• Simulation & Verification: Validated the instruction set and control logic in Logisim before committing to hardware.
• System Integration: Built and tested each module in isolation, then integrated them onto a shared bus.
• Demonstration: Successfully ran small programs demonstrating arithmetic operations and data output.

Technical Highlights

• Registers: Designed custom register boards with tri-state buffer outputs and synchronous load.
• ALU: Implemented addition, subtraction, and bitwise logic operations with discrete logic gates.
• Memory: Designed a program ROM PCB and accompanying RAM for instruction storage.
• Control Logic: Implemented fetch–decode–execute sequencing via microcoded control signals.
• Bus Design: Shared system bus with tri-state management across modules.

Media

Repository

GitHub – 8-Bit Computer

Hardware & Schematics

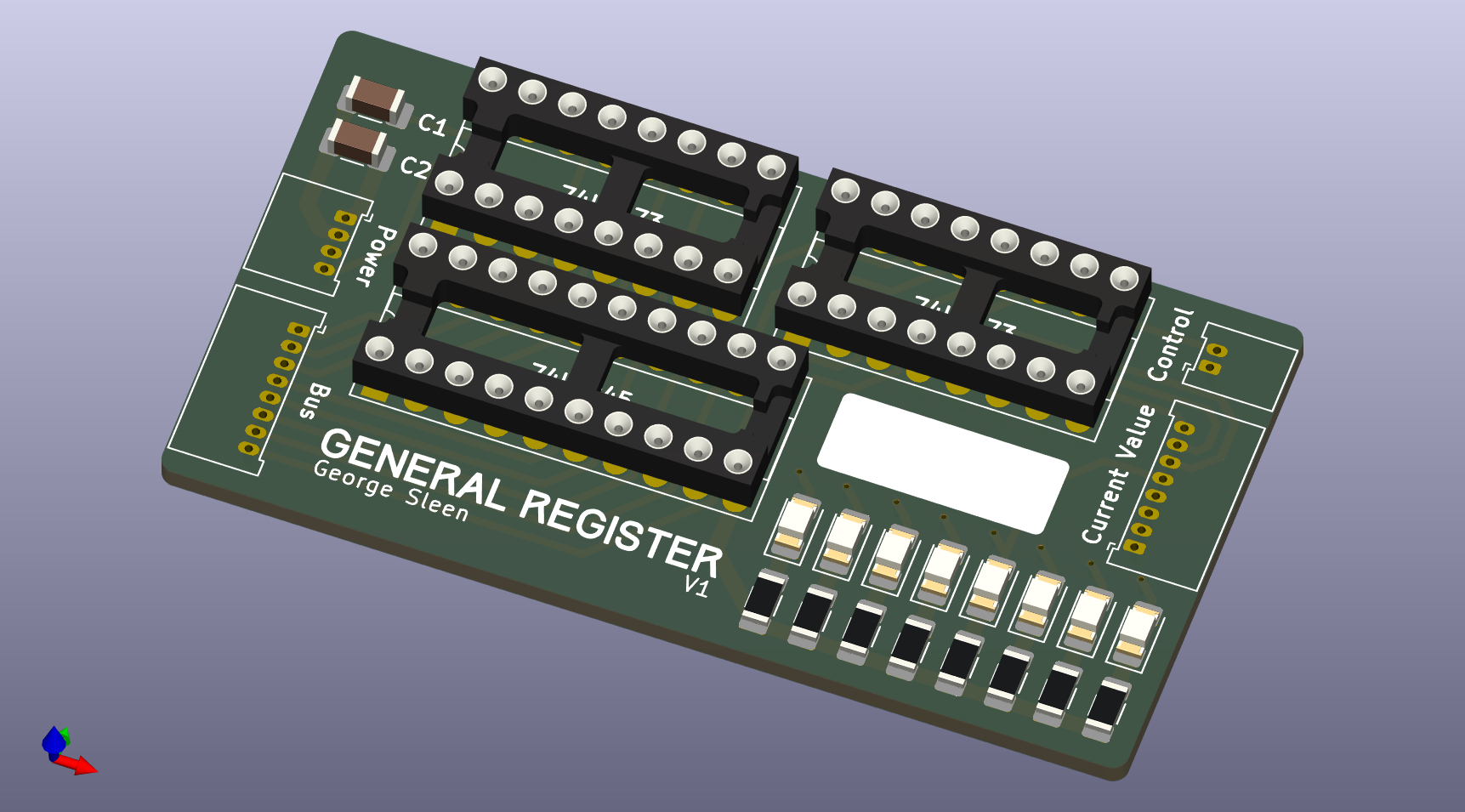

• General Register


• Program Memory PCB

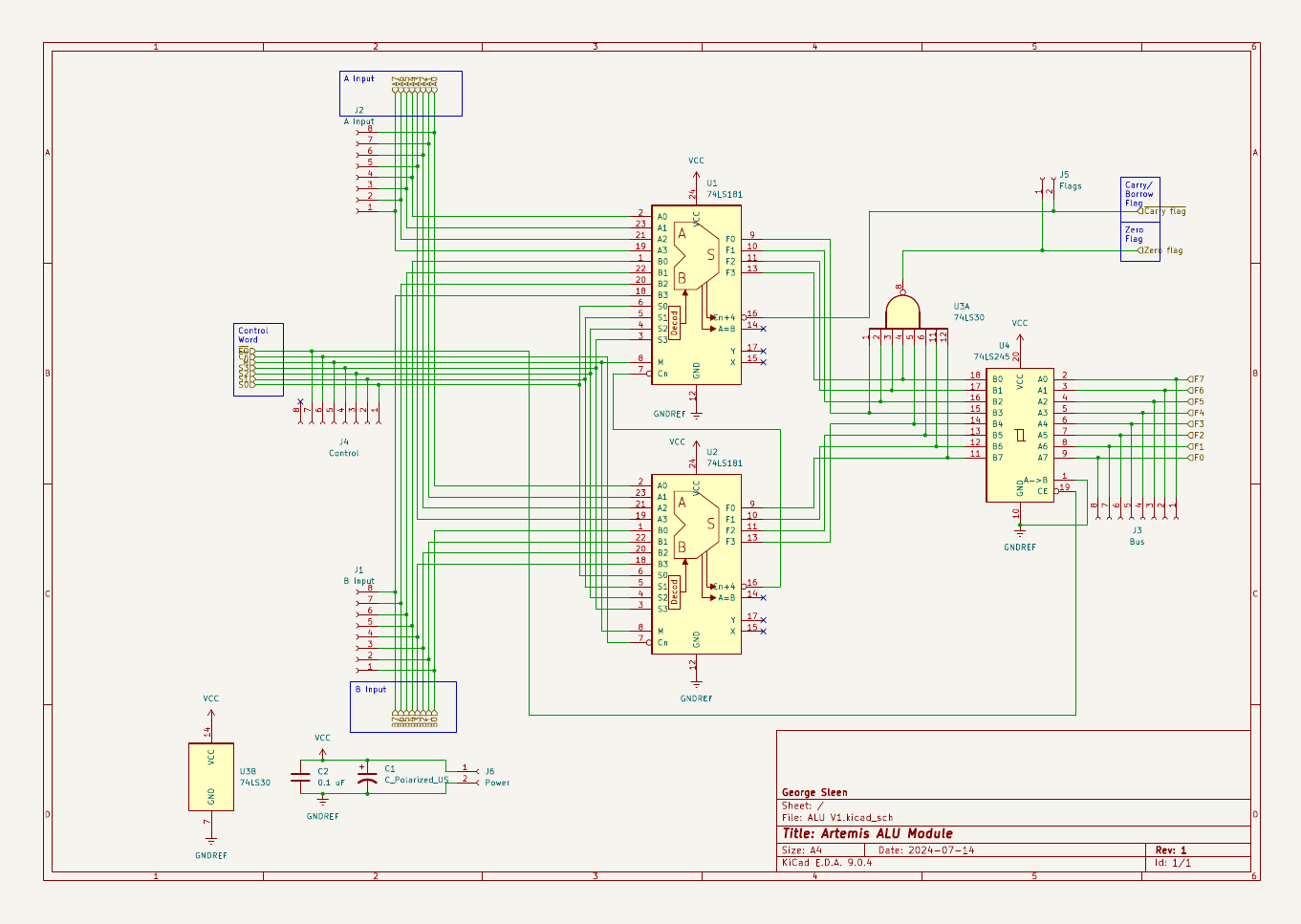

• ALU Schematic


Simulation

• Full simulated computer


• Simple program execution:

  1. Load 4 into Register A
  2. Add 13 to Register A
  3. Output result to output register

Reflection

This project provided a first-principles understanding of how digital computers operate at the logic level.
Key takeaways included:

• How simple bit manipulation and storage gives rise to the complex programs run by computers.
• Using simulation to de-risk hardware design.
• Appreciating the tradeoffs between simplicity, expandability, and physical wiring complexity.

If extended further, this design could support conditional branching, subroutines, or pipelining.
